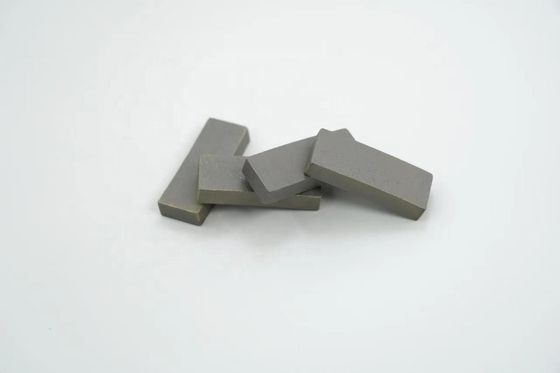

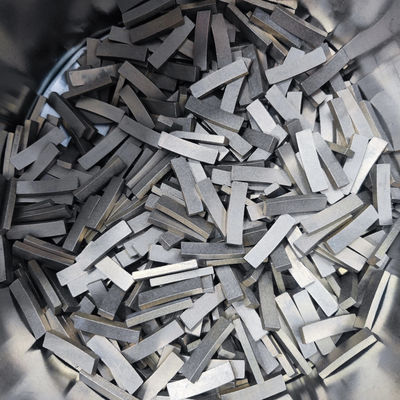

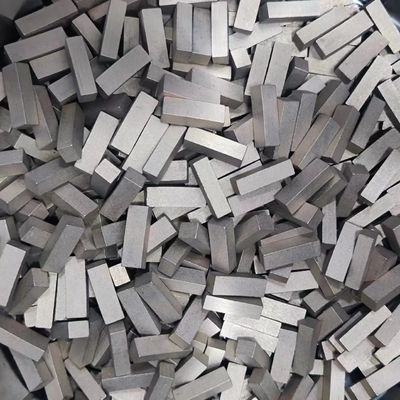

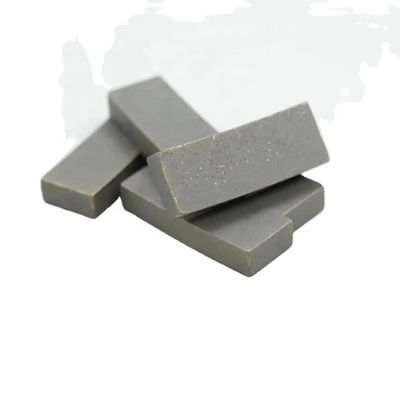

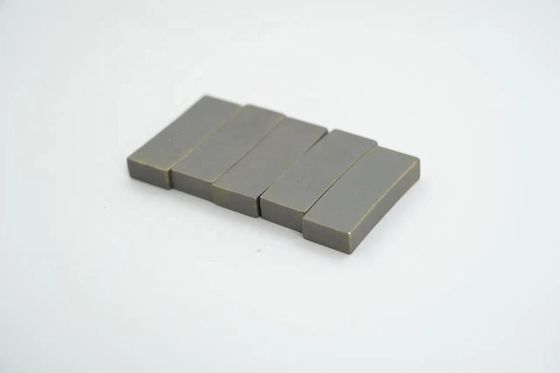

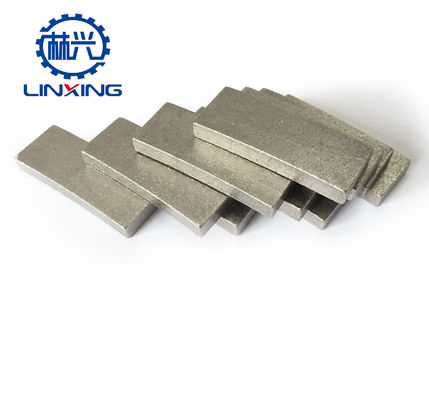

D800mm Einzelblattsegment 40*6*15mm Spitze für OEM-Unterstützung Granit Diamant Disc Cutter

Durchmesser der Klinge ((inch/mm)

Stahlkerndicke ((mm)

Segmentspezifikation (mm)

Segment Nr.

Φ12?? / 300

2.2

40x3.2x10(12,15, 20)

21

Φ14 ̊/350

2.2/2.4

40x3.2x10(12,15, 20)

24

Φ16 ̊/400

2.6

40x3,6x10(12,15, 20)

28

Φ18 ̊/450

2.8/3.0

40x4x10(12,15, 20)

32

Φ20/500

3.0/3.2

40x4.2x10(12,15, 20)

36

Φ24 ‰/600

3.6/3.8

40x5x10(12,15, 20)

42

Φ28 ̊/700

4

40x5.2x10(12,15, 20)

50

Φ32 ̊/800

4.5

40x6x10(12,15, 20)

46

Φ36 ‰/900

5.0

24x7.0/6.2x15 (siehe 13.20)

64

Φ40 ‰/1000

5.0

24x7.0/6.2x15 (siehe 13.20)

70

Φ48 ‰/1200

5.5

24x7.4/6.6x15 ((13,20)

80

Φ52/1300

6.0

24x8.0/7.2x15 ((13,20)

88

Φ56 ̊/1400

6.5

24x8.4/7.6x15 ((13,20)

92

Φ64 ̊/1600

7.2

24x9.2/8.4x15 ((13,20)

108

Φ72 ̊/1800

7.5

24x10.0/9.2x15 ((13,20)

120

Φ80 ‰ 2000

8.0

24x10.6/9.8x15 ((13,20)

128

Φ88 ̊/2200

8.0/9.0

24x11.0/10.2x15 ((13,20)

132

Φ100/2500

9.0

24x11.4/10.6x15 ((13,20)

140

Φ120/3000

9.5

24x12.4/11.6x15 ((13,20)

160

Φ140 ̊/3500

9.5

24x12.4/11.6x15 ((13,20)

180
